QRS PNO3 Processor
Q35 Speaker
Key Solenoid
Netgear Range Extender
PLX box
control with any Wi-Fi device
QRS Power Supply
QRS Remote Control
|
|
QRS Q35 SPEAKER
The Q35 PNO Speaker comes standard in the
PNOmation playback installation. Fits neatly under
a grand piano or inside the cabinet of an upright
piano. Its molded speaker cabinet and mounting
bracket make it a snap to install.
Its use of a Class A/B amplifier delivers beautiful,
high-quality audio reproduction. It has a switchable
115/230, 50Watts RMS and a 20-200khz frequency
response. It has two inputs, one for power and an
1/8th” stereo port. Add a second Q35 or upgrade to
a Q40 2.1.

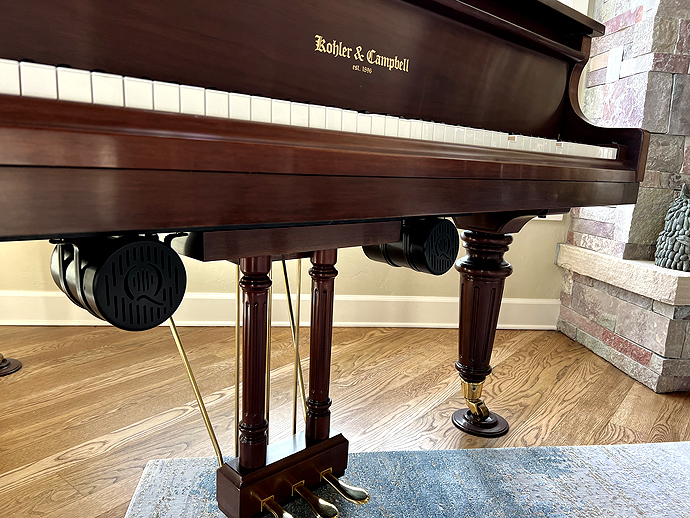

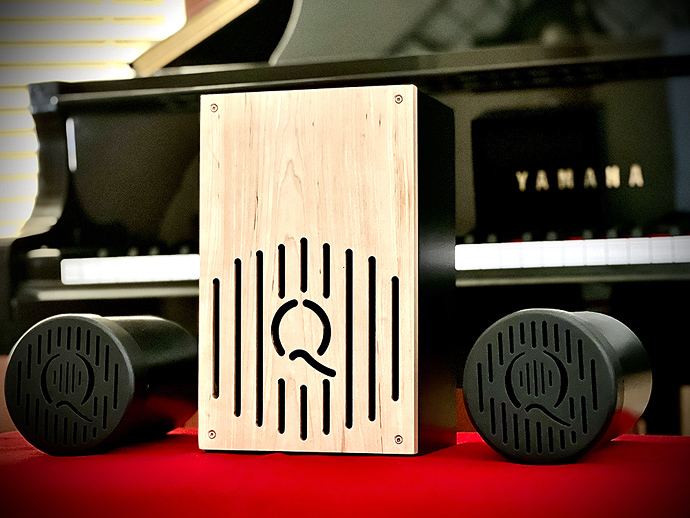

The Q40 2.1 PNO Speakers
The power of your piano is complemented by the
finest sound system any player system has ever
received. Built specifically for the player piano
application, the Q40 2.1 brings forward crisp vocals
and deep lows with exacting detail.
The distinctive, space saving design of the sub woofer
utilizes a tuned bass vent for not only excellent,
extended low frequency response down to 30HZ,
but also provides a vent for induced passive cooling.
This keeps the class A/B amplifiers cool without noisy
fans.
Designed to pair with the Q40 Bass, these custom
satellites give you an experience that melds with your
piano’s natural expression. Keyhole mounting bracket
delivers easy, unobtrusive installation.
Unique, extruded tube shaped enclosure promotes
the best acoustic small-package response. This
design practically eliminates stand waves and phase
distortions. Custom QRS-designed coaxial driver
configuration puts high frequencies in a coherent line
for accurate high-frequency response.
Satellites have a high end 4” full-range driver with 1”
copper voice coil and a 70 watt power rating. 60hz -
8Khz / Tweeter = 5/8”, Ferrofluid for low resonance and
high power performance, 5Khz - 20Khz.
